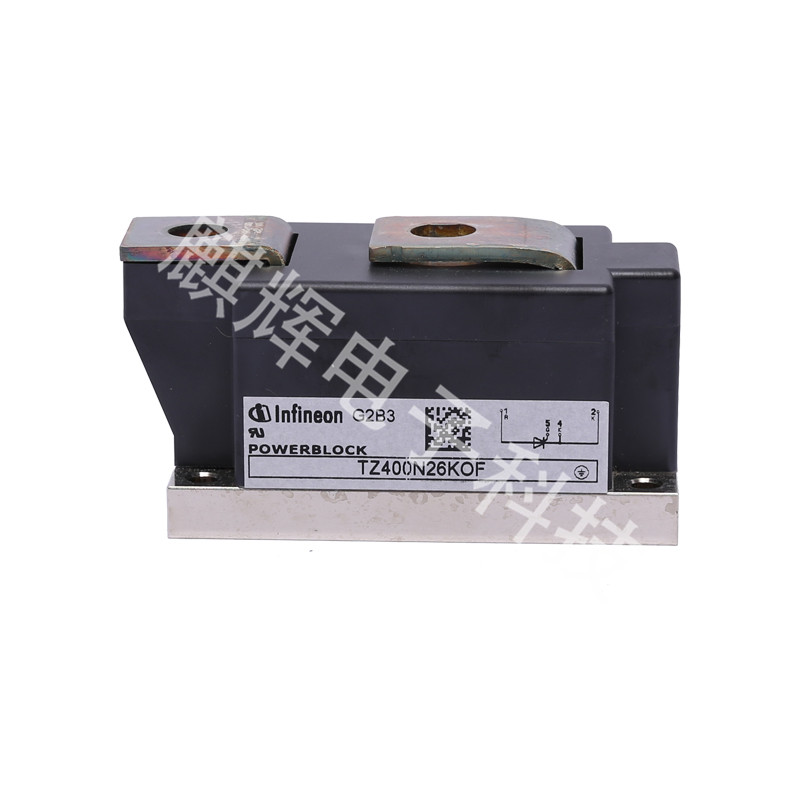

TZ400N26KOF


指标参数

ParametricsTZ400N26KOF
(diT/dt)cr [A/µs] (@DIN IEC 747- 6)150.0

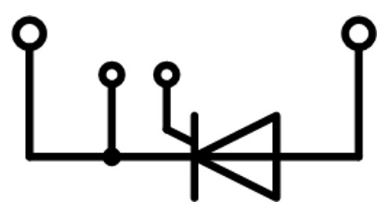

ConfigurationSingle SCR Phase Control
HousingPower Block 50 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)400/85
IFSM / ITSM [A] (@10ms, Tvj max)11000.0
RthJC [K/W] (@180° el sin)0.065
Tvj [°C]   max125.0
VDRM / VRRM [V]2600.0
VDRM/ VRRM (V)2600.0 V
VT0 [V] (@Tvj max)   max1.0
rT [mΩ] (@Tvj max)0.5
∫I2dt [A²s · 103] (@10ms, Tvj max)605.0
