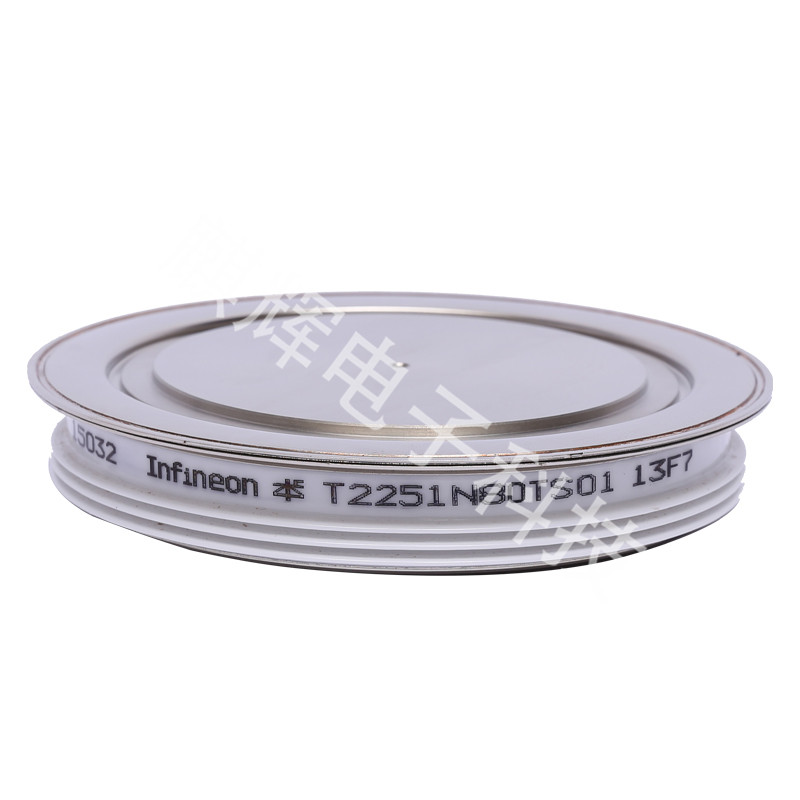

T2251N80TOH


指标参数

ParametricsT2251N80TOH
Clamping force [kn]   min  max63.0    91.0

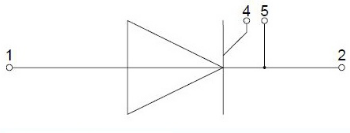

ConfigurationElectrical Triggered Phase Control Thyristor
HousingDisc dia 150mm height 26mm / Ceramic
ITAVM2260 (180 ° el sin)
ITAVM/TC [A/°C] (@180° el sin)2260/85
ITSM65000.0 A
ITSM [A] (@10ms, Tvj max)65000.0
RthJC [K/kW] (@180° el sin)   max4.8
Tvj [°C]   max125.0
VDRM / VRRM [V]8000.0
VDRM/ VRRM (V)8000.0 V
VT0 [V] (@Tvj max)   max1.24
VT/IT [V/kA] (@Tvj max)3.0/4.0
rT [mΩ] (@Tvj max)   max0.44
tq [µs]550.0
∫I2dt [A²s · 103] (@10ms, Tvj max)21100.0
