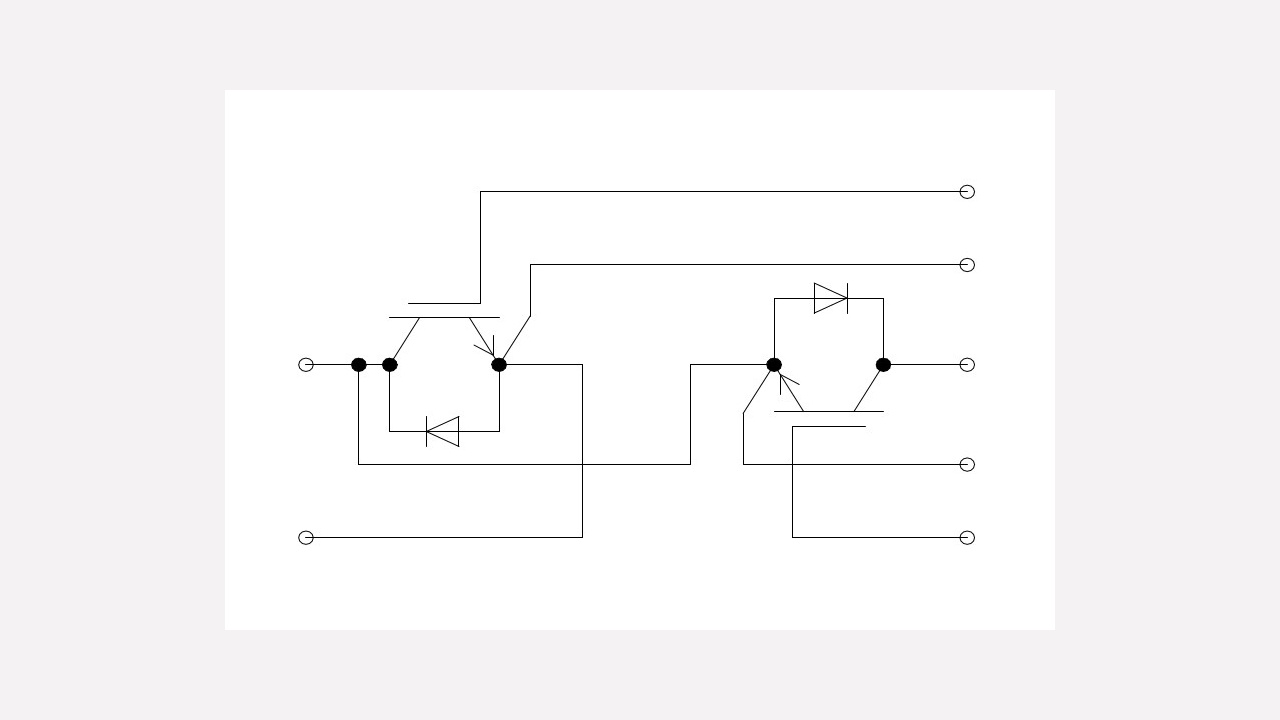

图表
指标参数

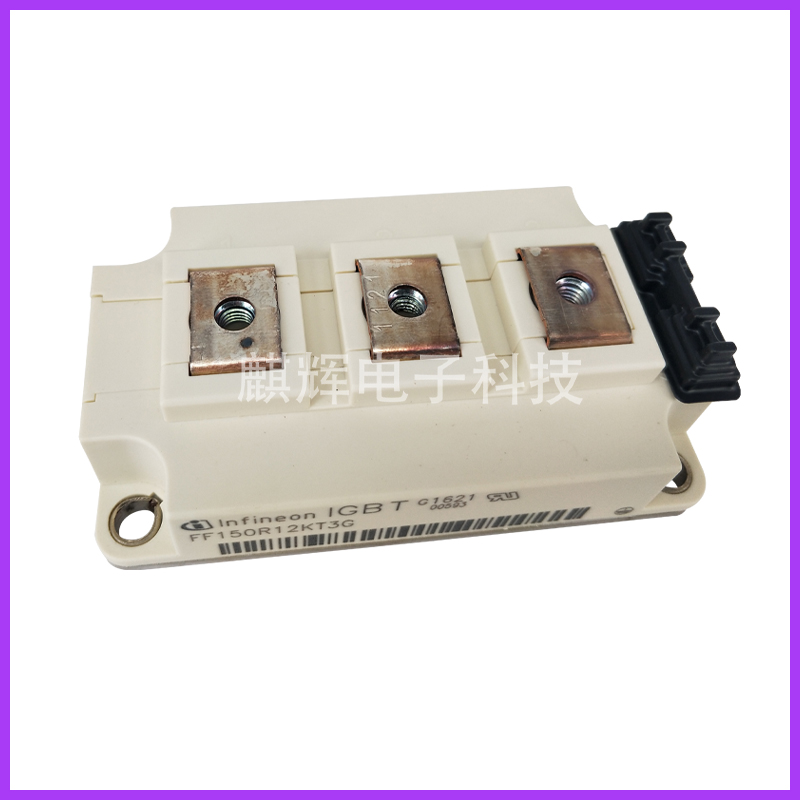

| Parametrics | FF150R12KT3G |
|---|
| Configuration | Dual |
| Dimensions (width) | 61.4 mm |
| Dimensions (length) | 106.4 mm |
| Housing | 62 mm |
| IC(nom) / IF(nom) | 150.0 A |
| IC max | 150.0 A |
| Qualification | Industrial |
| Technology | IGBT3 - T3 |
| VCE(sat) (Tvj=25°C typ) | 1.7 V |
| VF (Tvj=25°C typ) | 1.65 V |
| Voltage Class | 1200.0 V |
