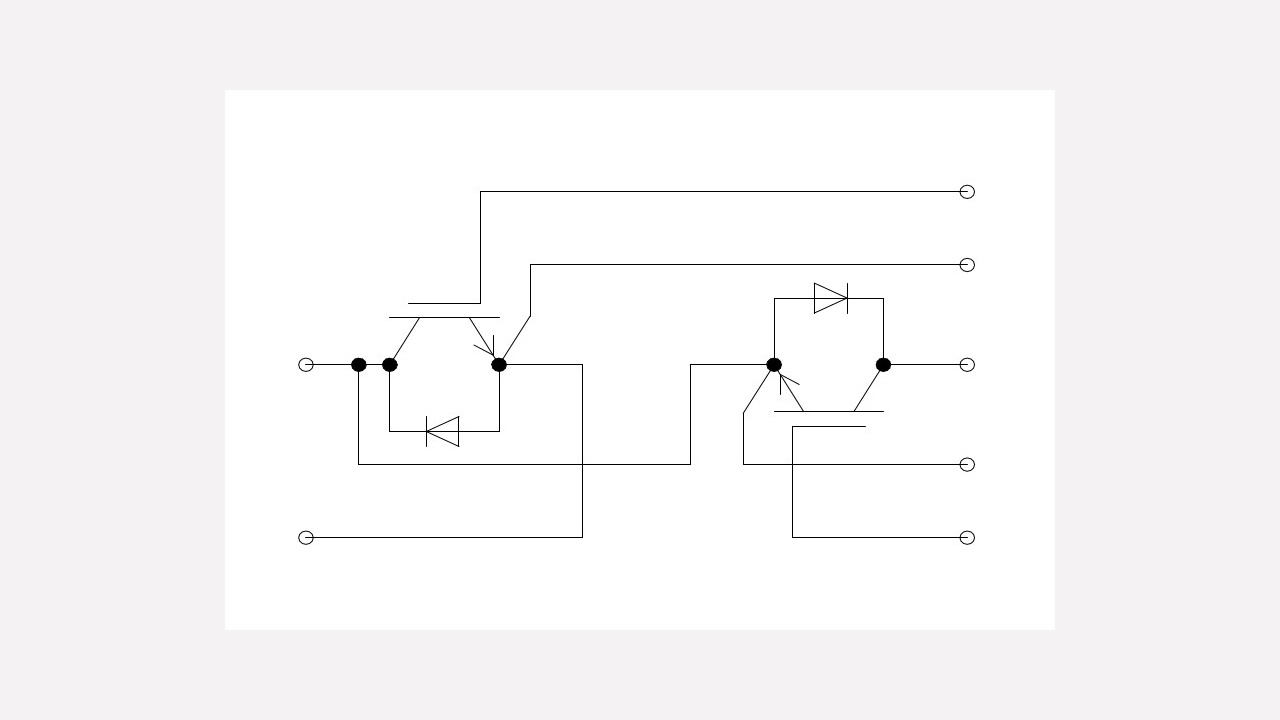

图表
指标参数
| Parametrics | FF300R12KT4 |
|---|
| Configuration | Dual |
| Dimensions (width) | 61.4 mm |
| Dimensions (length) | 106.4 mm |
| Housing | 62 mm |
| IC(nom) / IF(nom) | 300.0 A |
| IC max | 300.0 A |
| Qualification | Industrial |
| Technology | IGBT4 - T4 |
| VCE(sat) (Tvj=25°C typ) | 1.75 V |
| VF (Tvj=25°C typ) | 1.65 V |
| Voltage Class | 1200.0 V |
