图表
指标参数

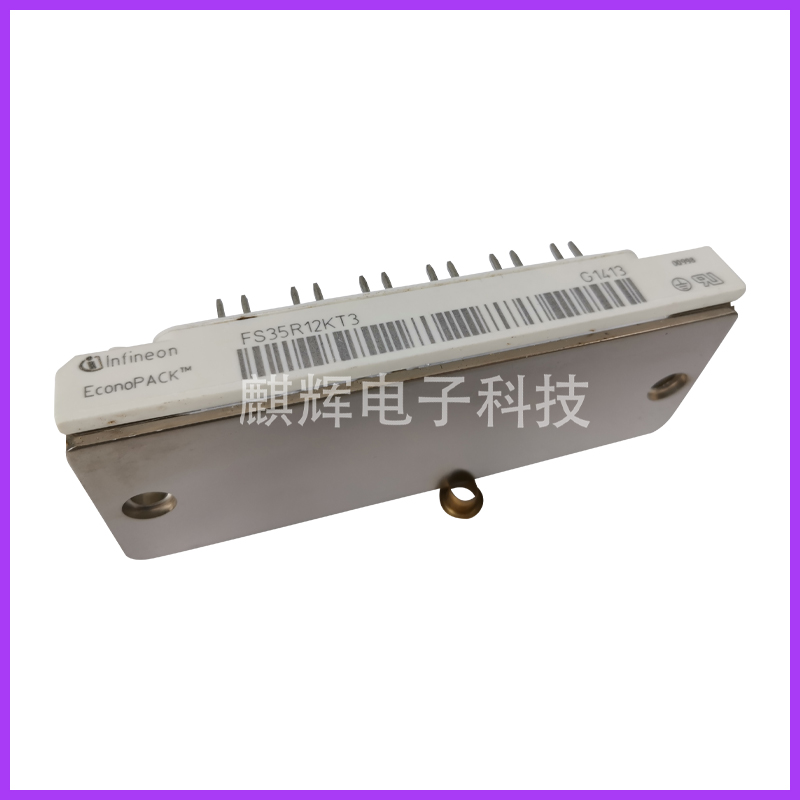

| Parametrics | FS35R12KT3 |
|---|

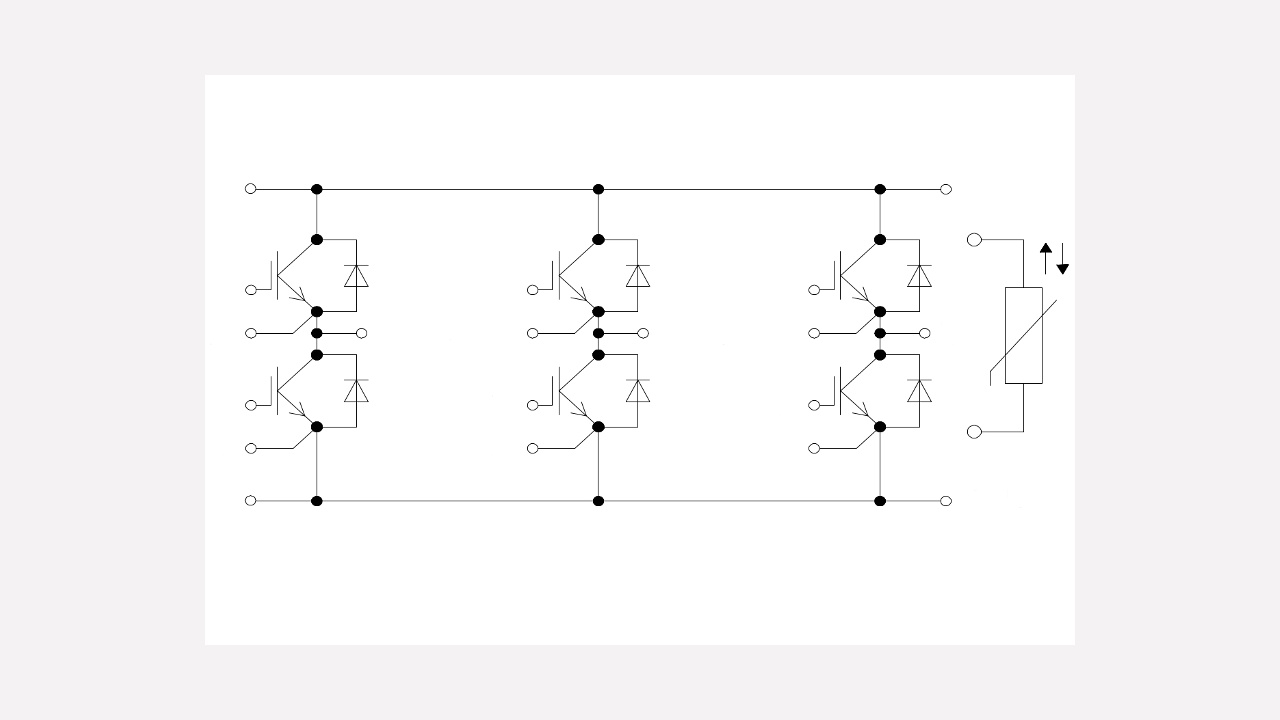

| Configuration | Sixpack |
| Dimensions (width) | 45.0 mm |
| Dimensions (length) | 107.5 mm |
| Housing | EconoPACK™ 2 |
| IC(nom) / IF(nom) | 35.0 A |
| IC max | 35.0 A |
| Qualification | Industrial |
| Technology | IGBT3 - T3 |
| VCE(sat) (Tvj=25°C typ) | 1.7 V |
| VF (Tvj=25°C typ) | 1.65 V |
| Voltage Class | 1200.0 V |
