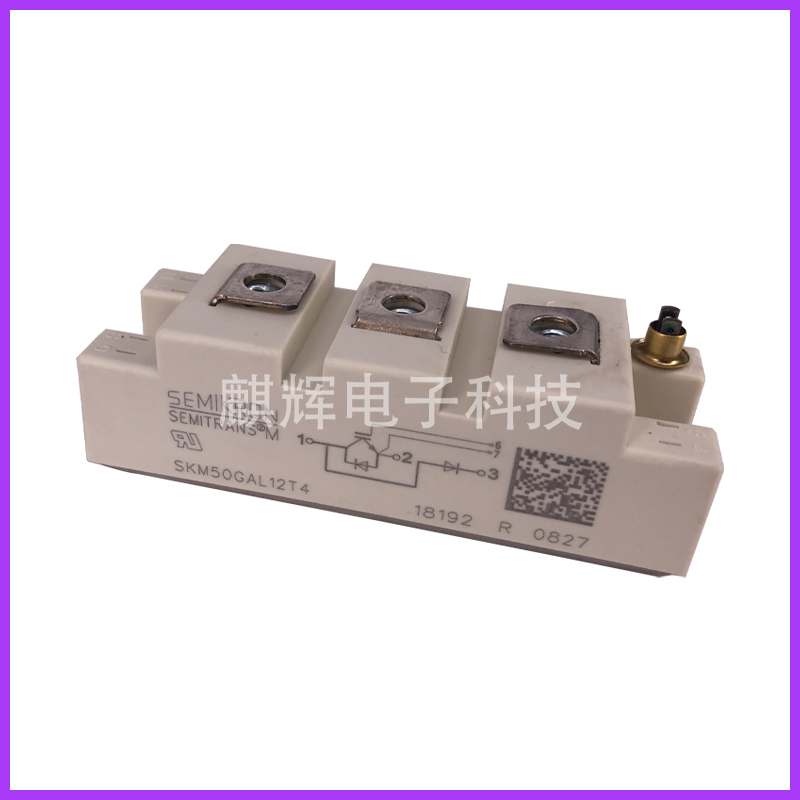

SKM50GAL12T4
SKM50GAL12T4
IGBT Modules
SEMITRANS 2 (94x34x30)
| Part Number | 22892290 |
| Product Status | In production |
| Housing | SEMITRANS 2 (94x34x30) |
| (LLxBBxHH) | 94x34x30 |
| Switches | Single Switch |
| VCES in V | 1200 |
| ICnom in A | 50 |
| Technology | IGBT 4 Fast (Trench) |
| 图片 | 品牌/名称 | 型号 | 封装结构 | 电压 | 电流 | 参考价格 |
 | 西门康 晶闸管/二极管模块 | SKKH 15/06 E | SEMIPACK® 0 Thyristor / Diode Modules | 600V | 13A | ¥104.0 |
| SKKH 15/08 E | SEMIPACK® 0 Thyristor / Diode Modules | 800V | 13A | ¥108.0 | ||
| SKKH15/12E | SEMIPACK® 0 Thyristor / Diode Modules | 1200V | 13A | ¥108.0 | ||
| SKKH15/16E | SEMIPACK® 0 Thyristor / Diode Modules | 1600V | 13A | ¥112.0 | ||
 | 西门康 晶闸管/二极管模块 | SKKH27/12E | SEMIPACK® 1 Thyristor / Diode Modules | 1200V | 25A | ¥135.0 |
| SKKH27/16E | SEMIPACK® 1 Thyristor / Diode Modules | 1600V | 25A | ¥141.0 | ||
| SKKH42/12E | SEMIPACK® 1 Thyristor / Diode Modules | 1200V | 40A | ¥135.0 | ||
| SKKH42/16E | SEMIPACK® 1 Thyristor / Diode Modules | 1600V | 40A | ¥141.0 | ||
| SKKH57/12E | SEMIPACK® 1 Thyristor / Diode Modules | 1200V | 50A | ¥143.0 | ||
| SKKH57/16E | SEMIPACK® 1 Thyristor / Diode Modules | 1600V | 50A | ¥150.0 | ||
| SKKH72/12E | SSEMIPACK® 1 Thyristor / Diode Modules Modules | 1200V | 70A | ¥185.0 | ||
| SKKH72/16E | SEMIPACK® 1 Thyristor / Diode Modules | 1600V | 70A | ¥193.0 | ||
| SKKH92/12E | SEMIPACK® 1 Thyristor / Diode Modules | 1200V | 97A | ¥185.0 | ||
| SKKH92/16E | SEMIPACK® 1 Thyristor / Diode Modules | 1600V | 97A | ¥193.0 | ||
| SKKH106/12E | SEMIPACK® 1 Thyristor / Diode Modules | 1200V | 106A | ¥185.0 | ||
| SKKH106/16E | SEMIPACK® 1 Thyristor / Diode Modules | 1600V | 106A | ¥193.0 | ||
 | 西门康 晶闸管/二极管模块 | SKKH122/12E | SEMIPACK® 2 Thyristor / Diode Modules | 1200V | 129A | ¥250.0 |
| SKKH122/16E | SEMIPACK® 2 Thyristor / Diode Modules | 1600V | 129A | ¥275.0 | ||
| SKKH132/12E | SEMIPACK® 2 Thyristor / Diode Modules | 1200V | 137A | ¥304.0 | ||
| SKKH132/16E | SEMIPACK® 2 Thyristor / Diode Modules | 1600V | 137A | ¥333.0 | ||
| SKKH162/12E | SEMIPACK® 2 Thyristor / Diode Modules | 1200V | 156A | ¥304.0 | ||
| SKKH162/16E | SEMIPACK® 2 Thyristor / Diode Modules | 1600V | 156A | ¥333.0 | ||
| SKKH172/16E | SEMIPACK® 2 Thyristor / Diode Modules | 1600 V | 175A | ¥333.0 | ||
 | 西门康 晶闸管/二极管模块 | SKKH250/12E | SEMIPACK® 3 Thyristor / Diode Modules | 1200V | 249A | ¥1,177.0 |
| SKKH250/16E | SEMIPACK® 3 Thyristor / Diode Modules | 1600V | 249A | ¥1,227.0 | ||
| SKKH273/12E | SEMIPACK® 3 Thyristor / Diode Modules | 1200V | 274A | ¥688.0 | ||
| SKKH273/16E | SEMIPACK® 3 Thyristor / Diode Modules | 1600V | 274A | ¥719.0 | ||
| SKKH323/12E | SEMIPACK® 3 Thyristor / Diode Modules | 1200V | 320A | ¥688.0 | ||
| SKKH323/16E | SEMIPACK® 3 Thyristor / Diode Modules | 1600V | 320A | ¥719.0 | ||
 | 西门康 晶闸管/二极管模块 | SKKH570/12E | SEMIPACK® 5 Thyristor / Diode Modules | 1200V | 570A | 2000 |
| SKKT570/14E | SEMIPACK® 5 Thyristor / Diode Modules | 1600V | 570A | 2099 |
